Solving Inverse PDE Problems using Monte Carlo Estimators

Ekrem Fatih Yilmazer Delio Vicini Wenzel Jakob
To appear in Transactions on Graphics (Proceedings of SIGGRAPH Asia 2024)

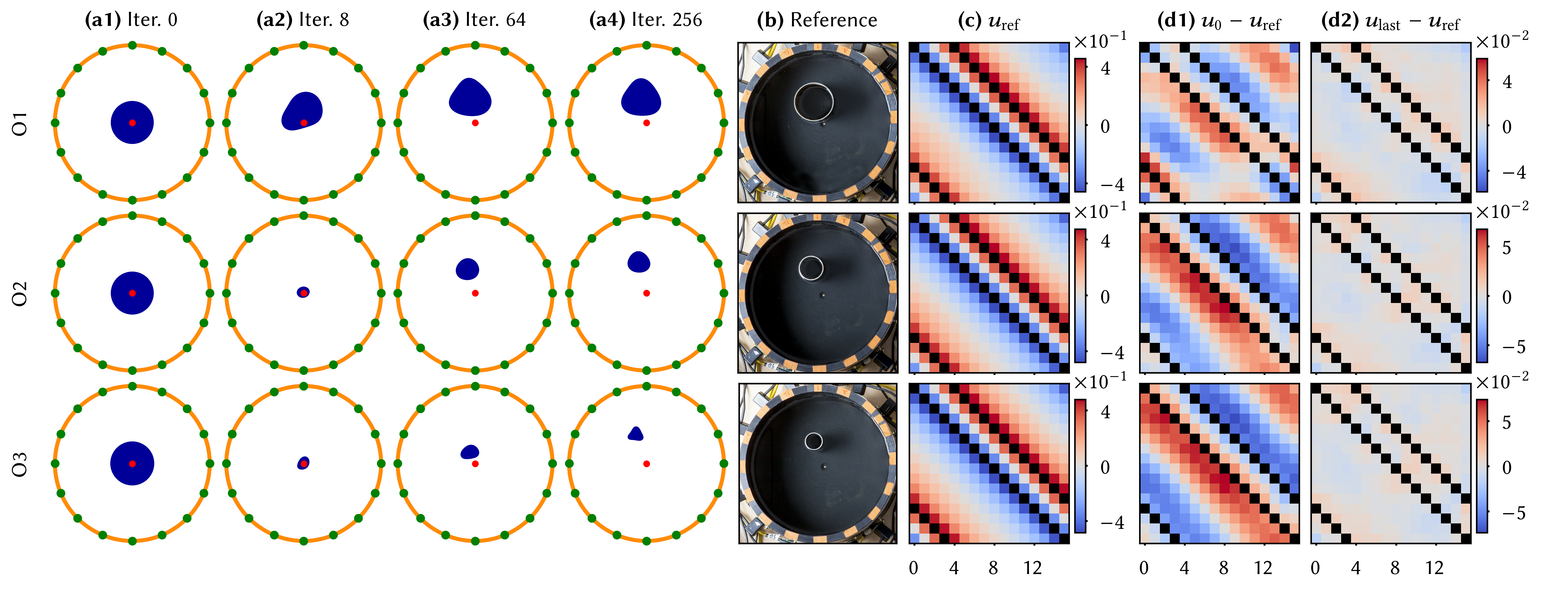

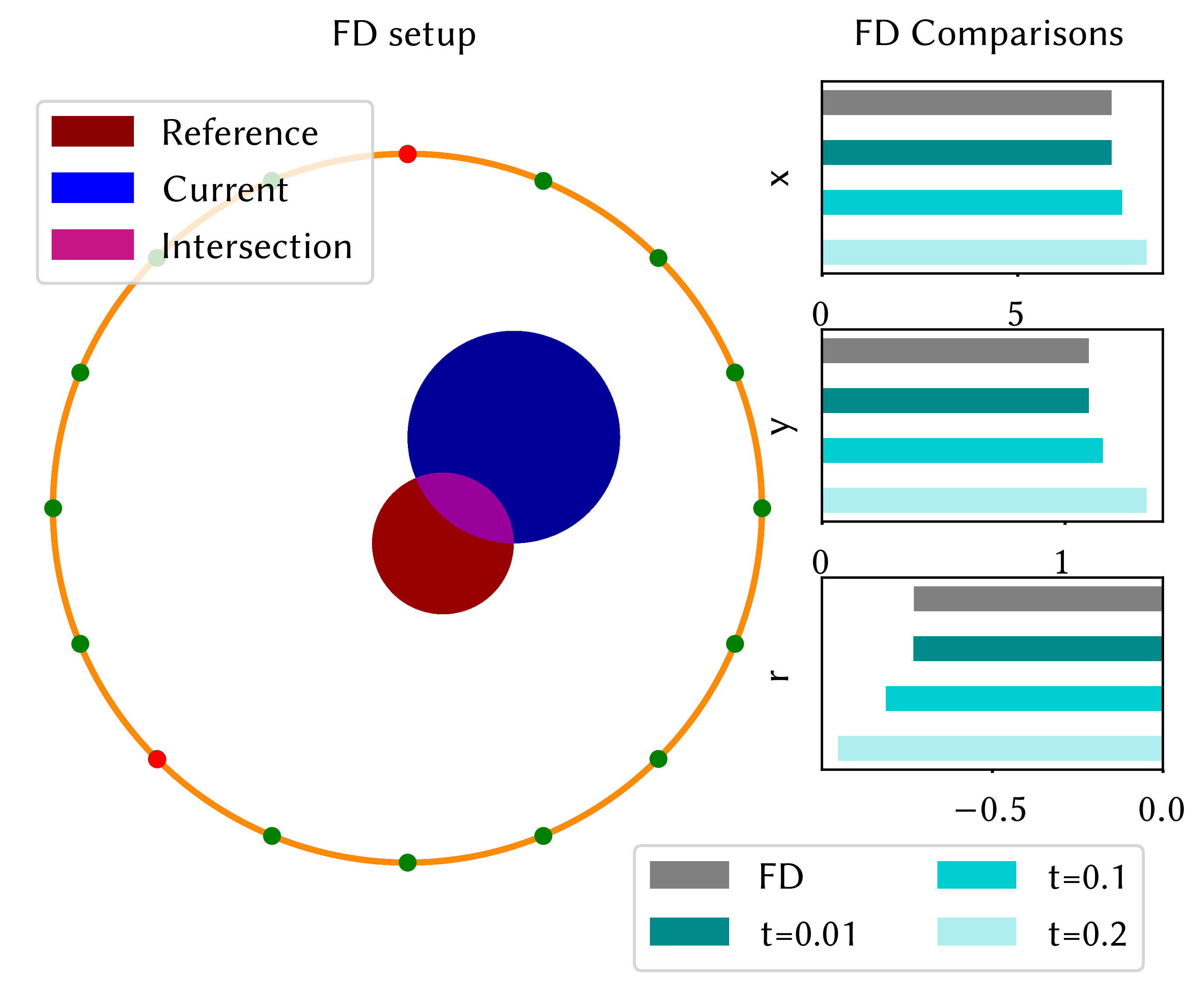

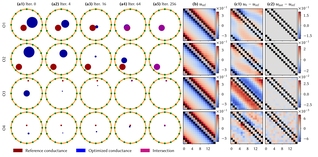

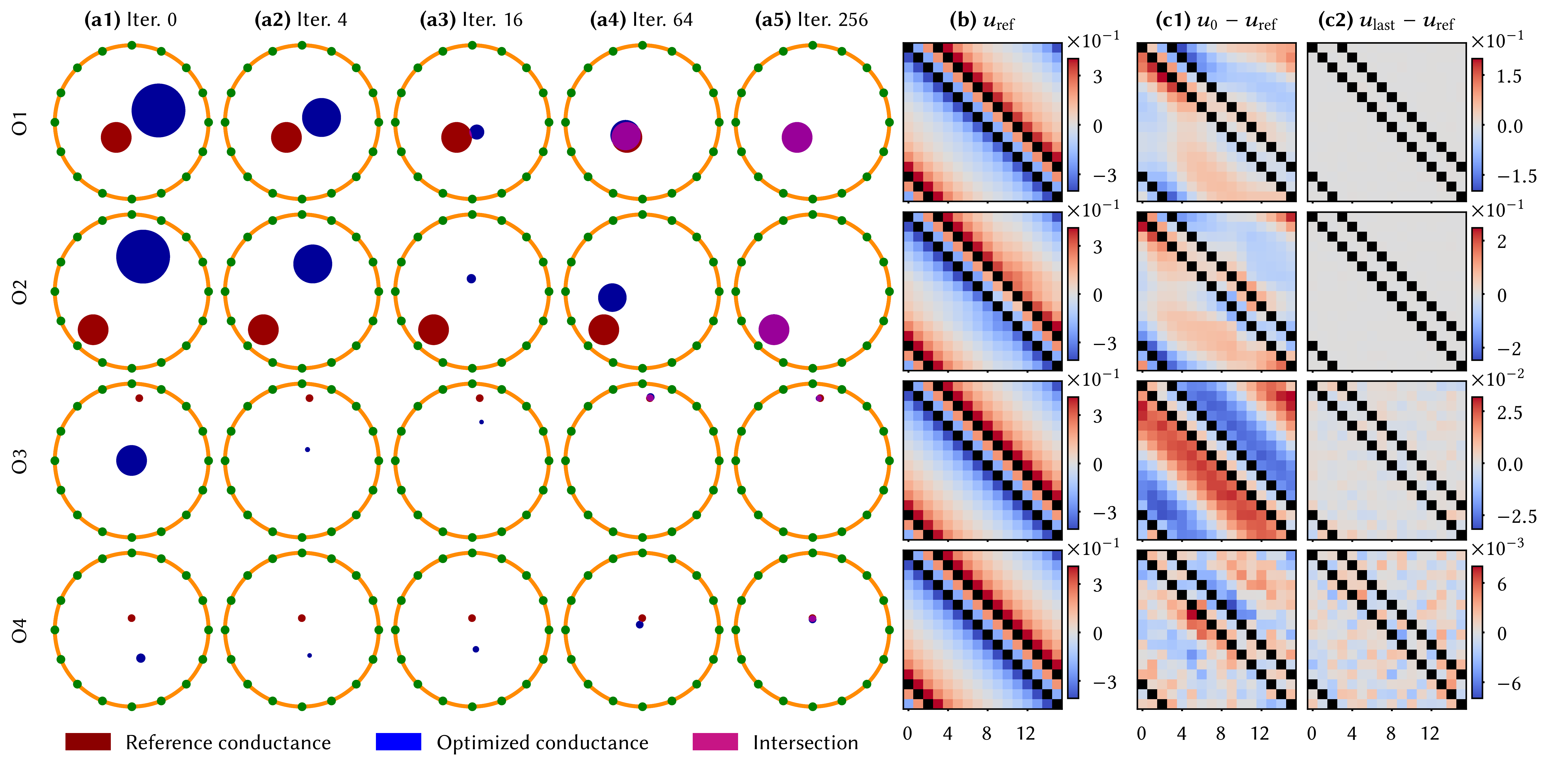

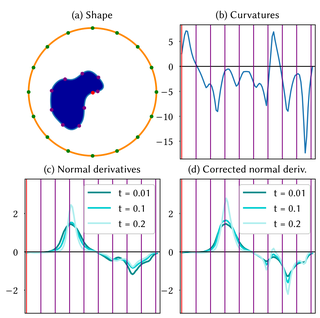

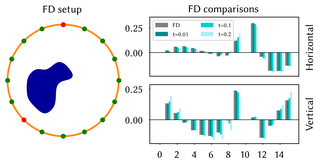

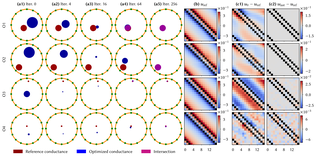

We ap­ply our in­verse PDE solv­er to a 2D elec­tric­al im­ped­ance tomo­graphy ex­per­i­ment [Haupt­mann et al . 2017], in which an elec­tric cur­rent flows through a sa­line-filled wa­ter tank con­tain­ing con­duct­ing ob­jects of dif­fer­ent sizes (pho­to­graphs in middle). The mark­er in the middle in­dic­ates the cen­ter. In­ject­ing a cur­rent us­ing 2 of 16 uni­formly spaced elec­trodes at the tank bound­ary gen­er­ates a meas­ur­able voltage dif­fer­ence at the oth­er elec­trodes, and in­ject­ing at vari­ous loc­a­tions pro­duces a mat­rix 𝑒ref of meas­ure­ments. The ob­ject­ive of this in­verse prob­lem is to in­fer the prop­er­ties of the con­duct­or from this data. We per­form a dif­fer­en­ti­able sim­u­la­tion of this setup to op­tim­ize the cen­ter and ra­di­us of a con­duct­ing circle. The frames on the left show the pro­gres­sion of the op­tim­iz­a­tion (columns (a)), while the right­most two columns re­veal how the pre­dicted voltages be­come in­creas­ingly con­sist­ent with the meas­ure­ment (columns (d)).

Abstract

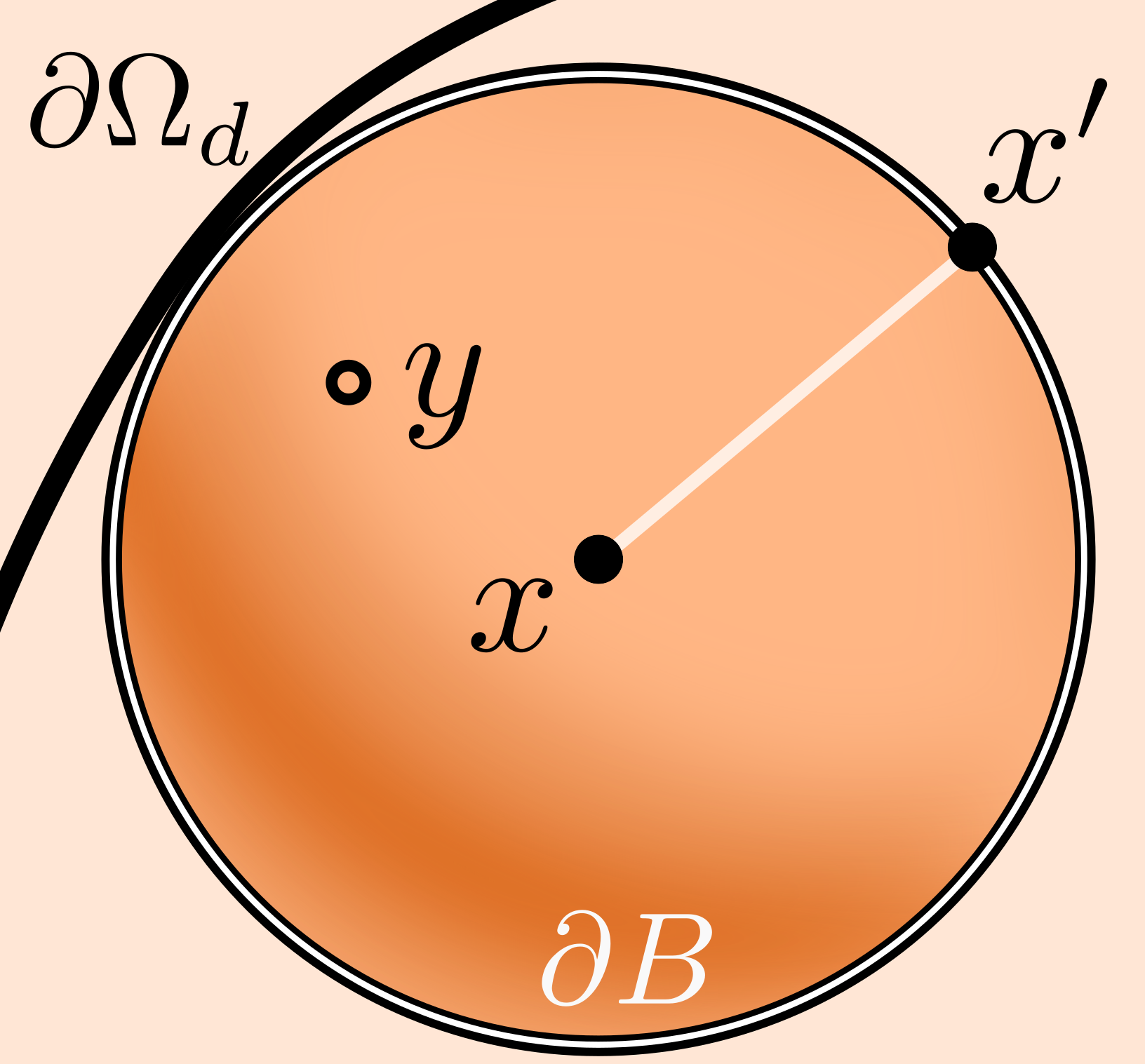

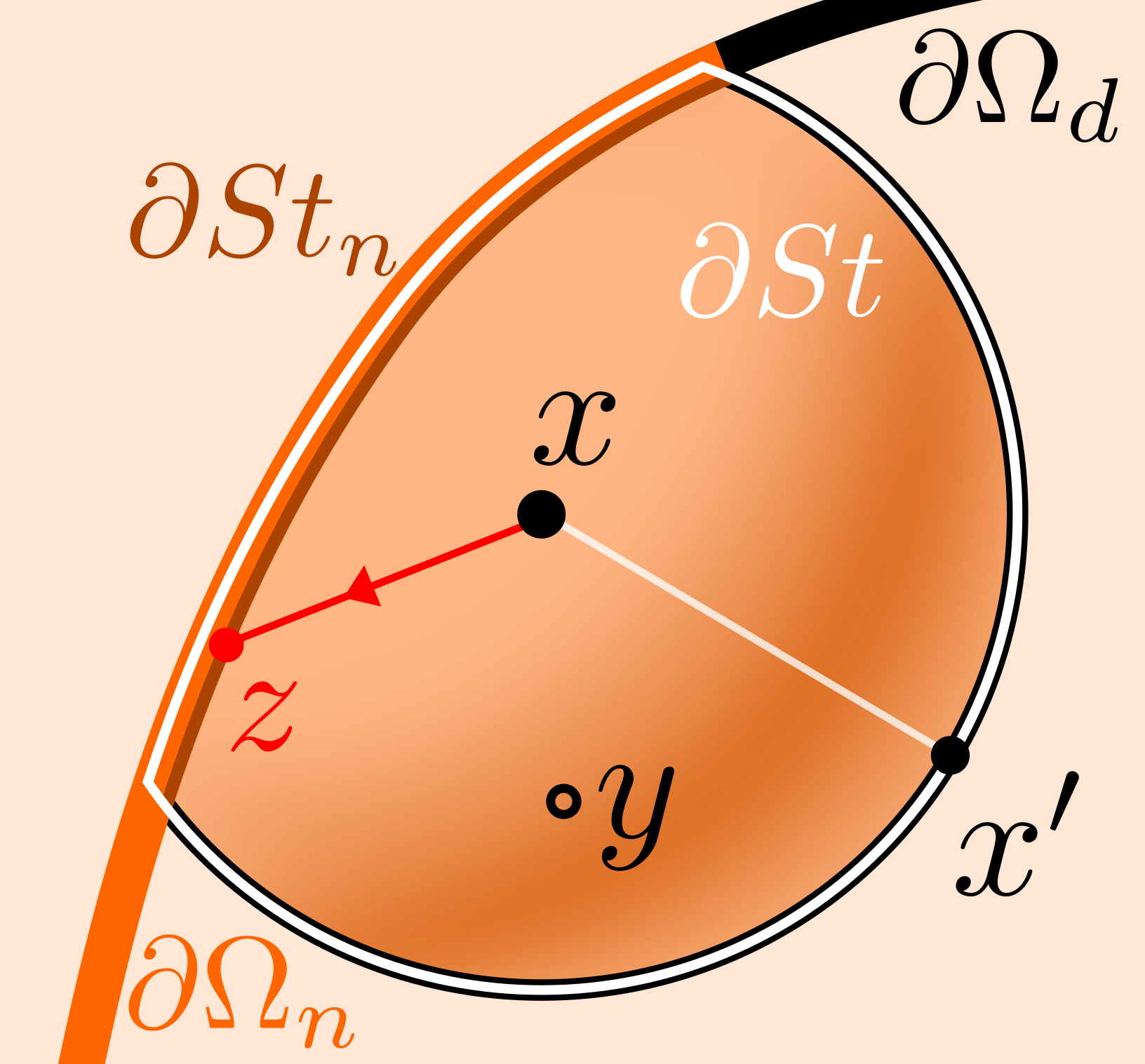

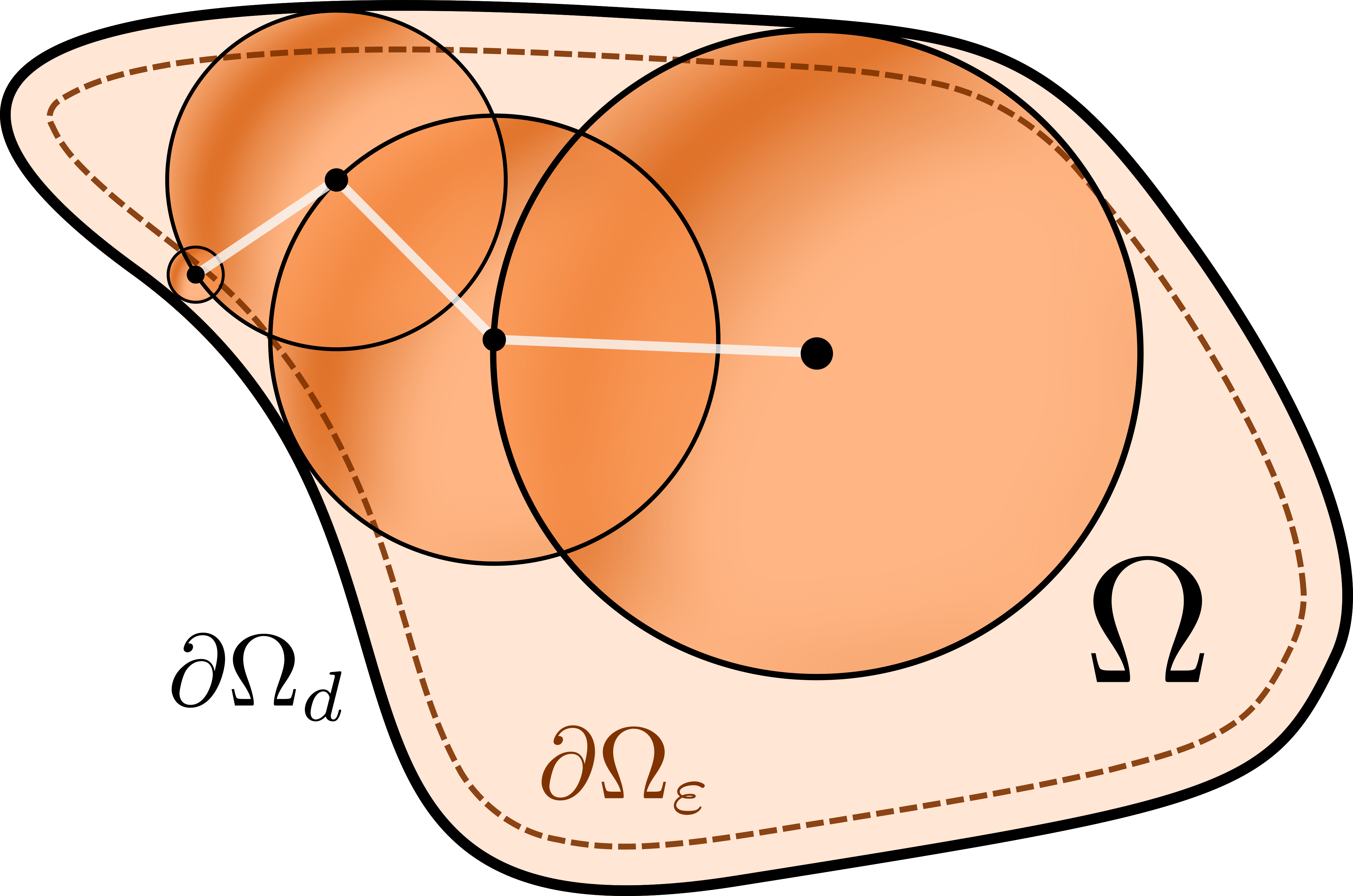

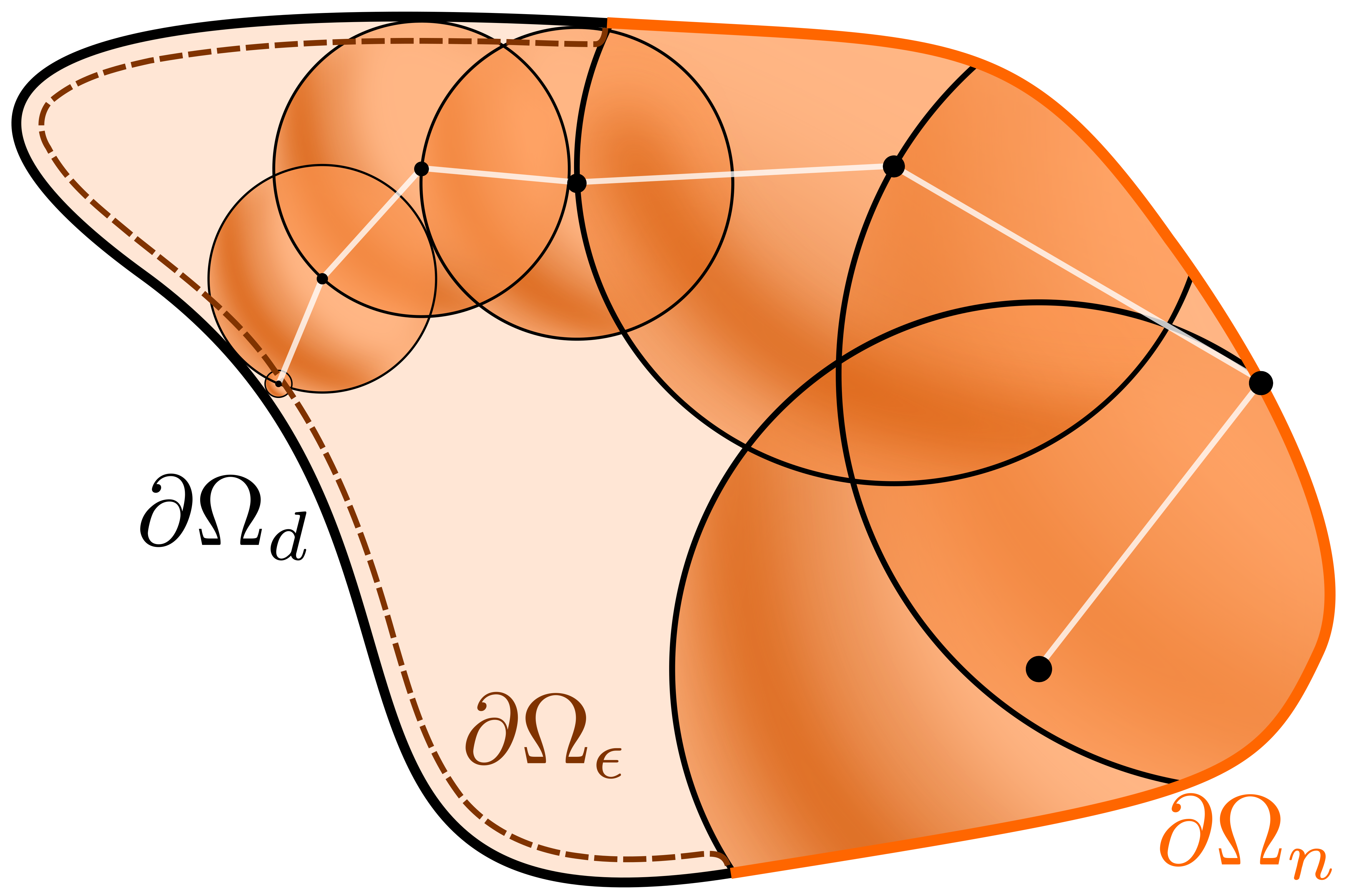

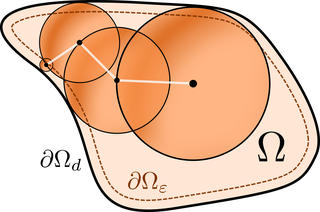

Par­tial dif­fer­en­tial equa­tions can mod­el di­verse phys­ic­al phe­nom­ena in­clud­ing heat dif­fu­sion, in­com­press­ible flows, and elec­tro­stat­ic po­ten­tials. Giv­en a de­scrip­tion of an ob­ject’s bound­ary and in­teri­or, tra­di­tion­al meth­ods solve such PDEs by densely mesh­ing the in­teri­or and then solv­ing a large and sparse lin­ear sys­tem de­rived from this mesh. Re­cent grid-free solv­ers take an al­tern­at­ive ap­proach and avoid this com­plex­ity in ex­change for ran­dom­ness: they com­pute stochast­ic solu­tion es­tim­ates and gen­er­ally bear a strik­ing re­semb­lance to phys­ic­ally-based ren­der­ingΒ al­gorithms.

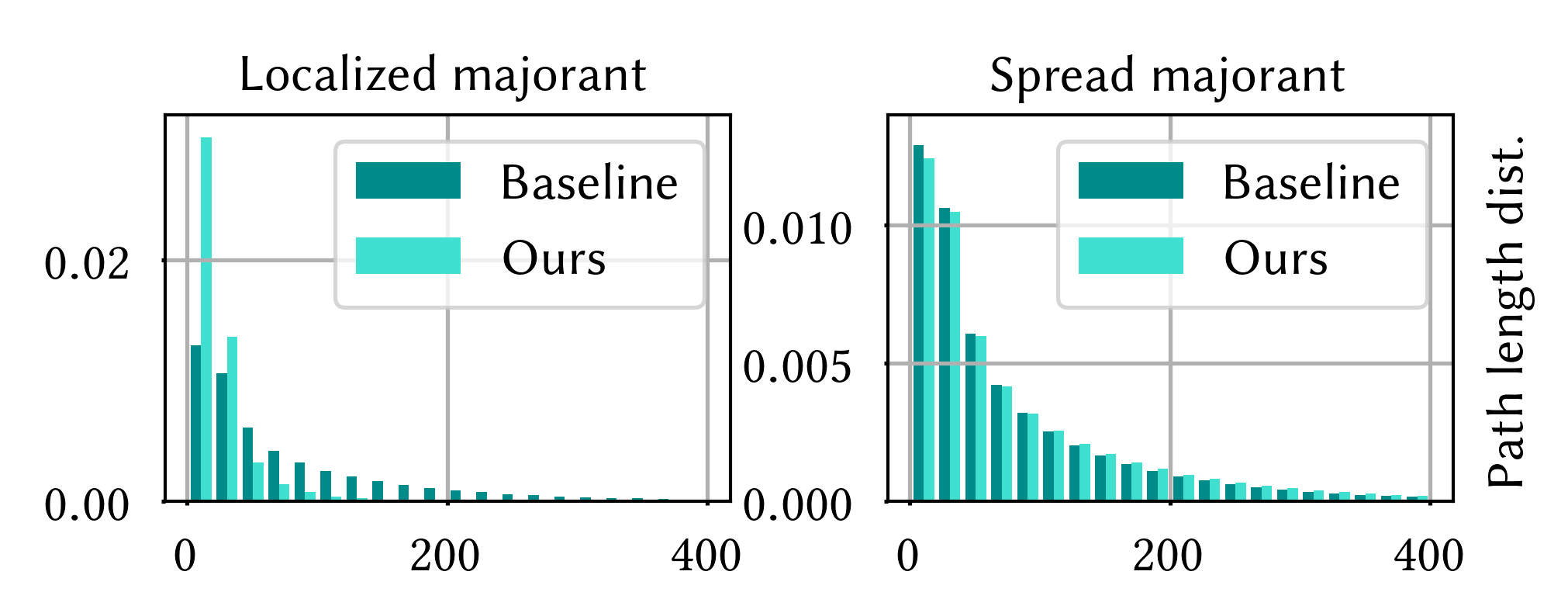

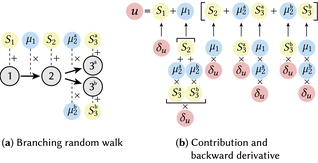

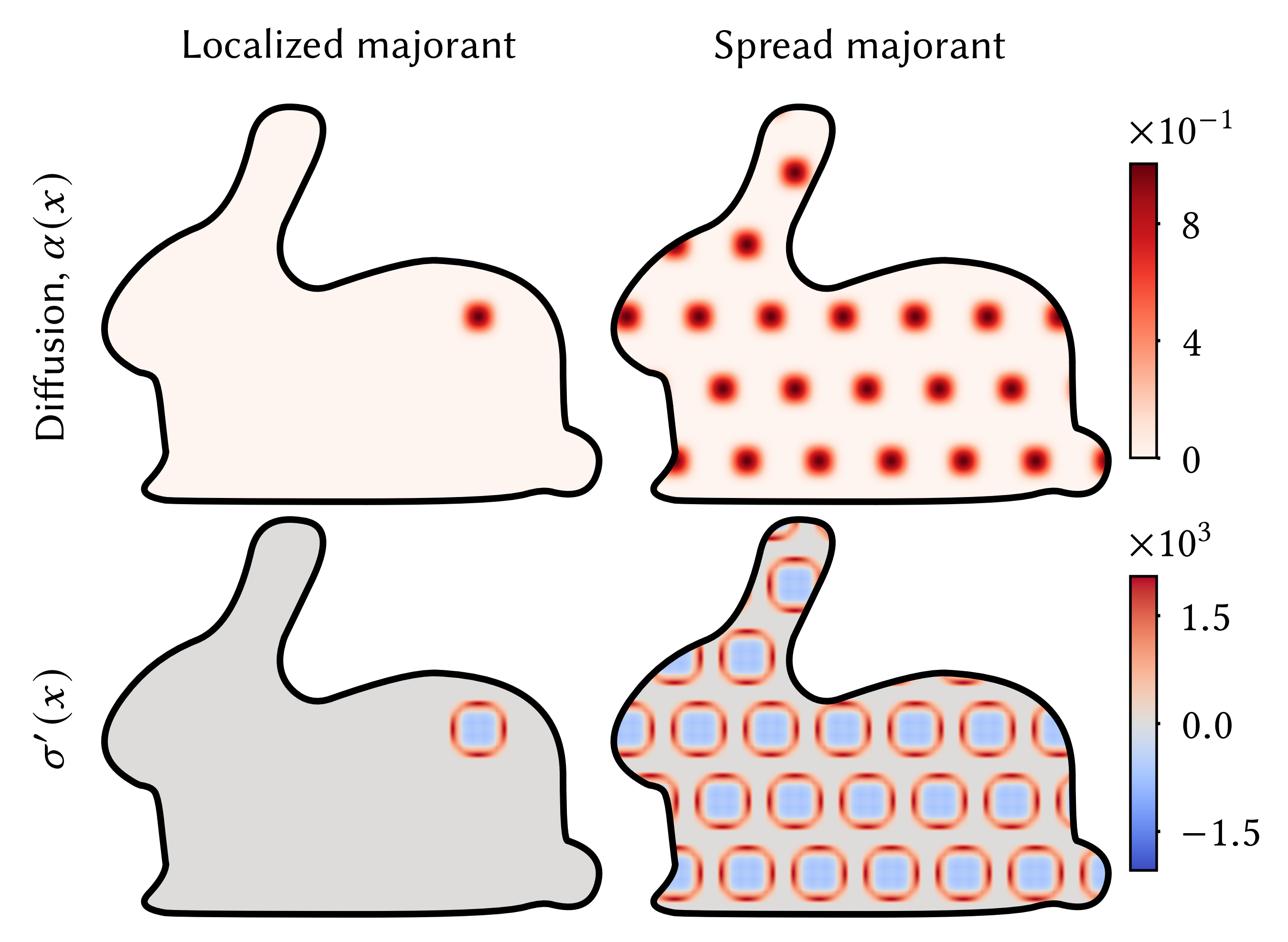

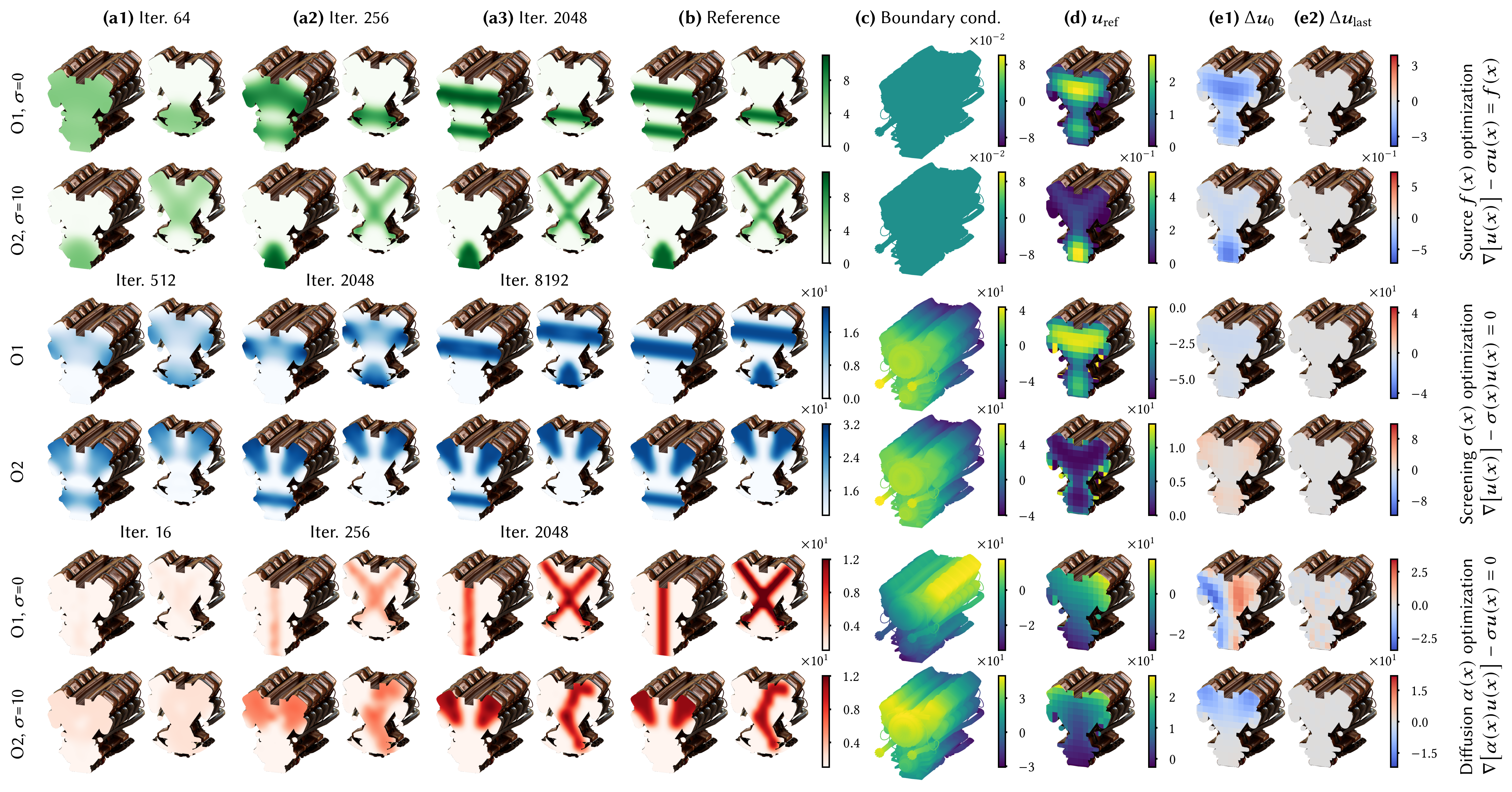

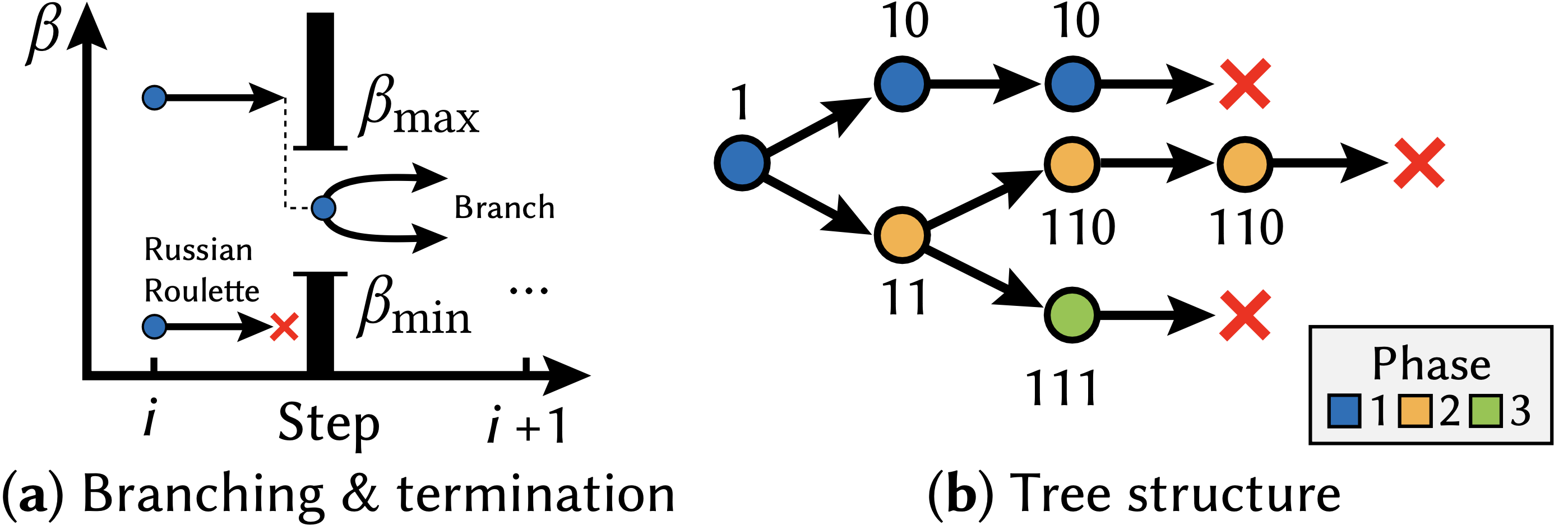

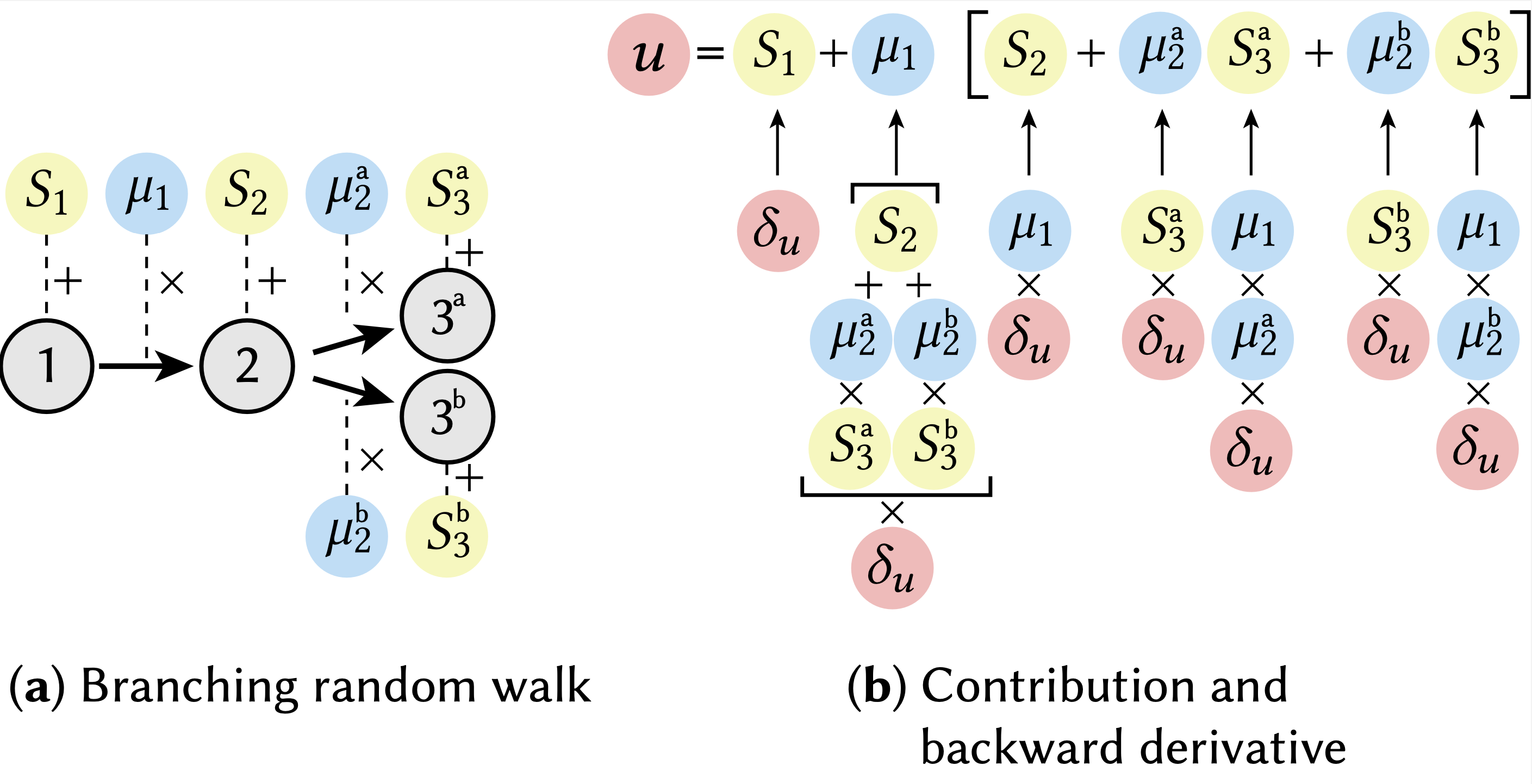

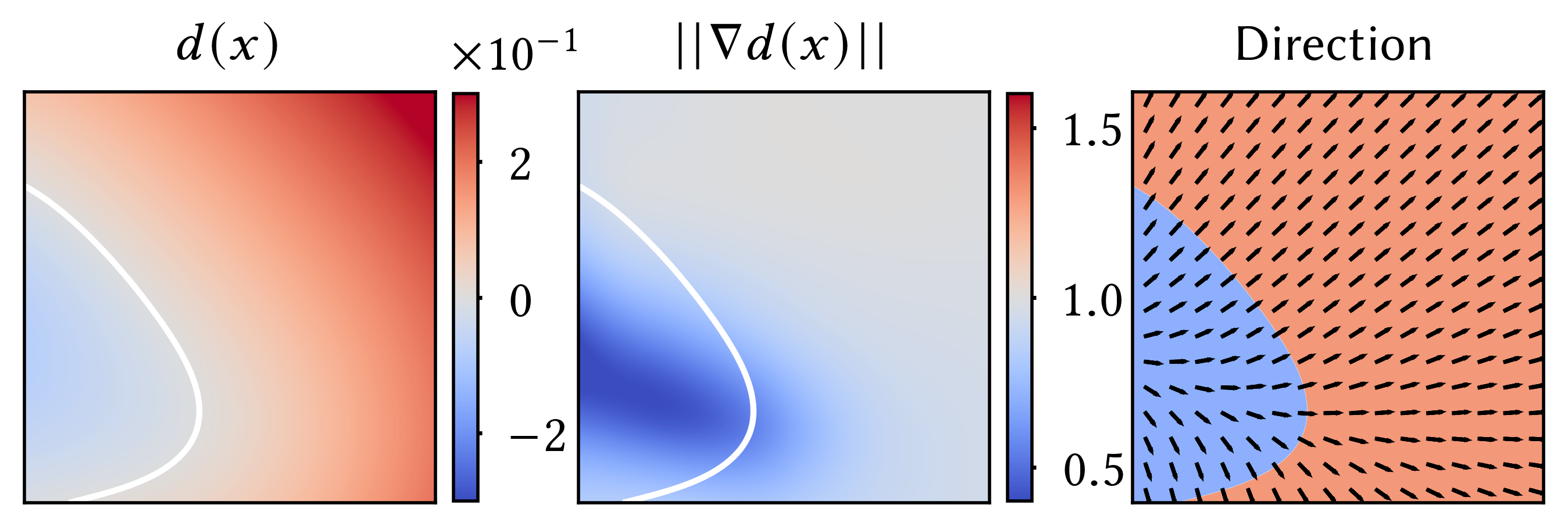

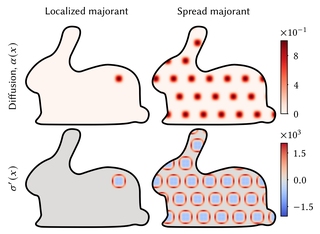

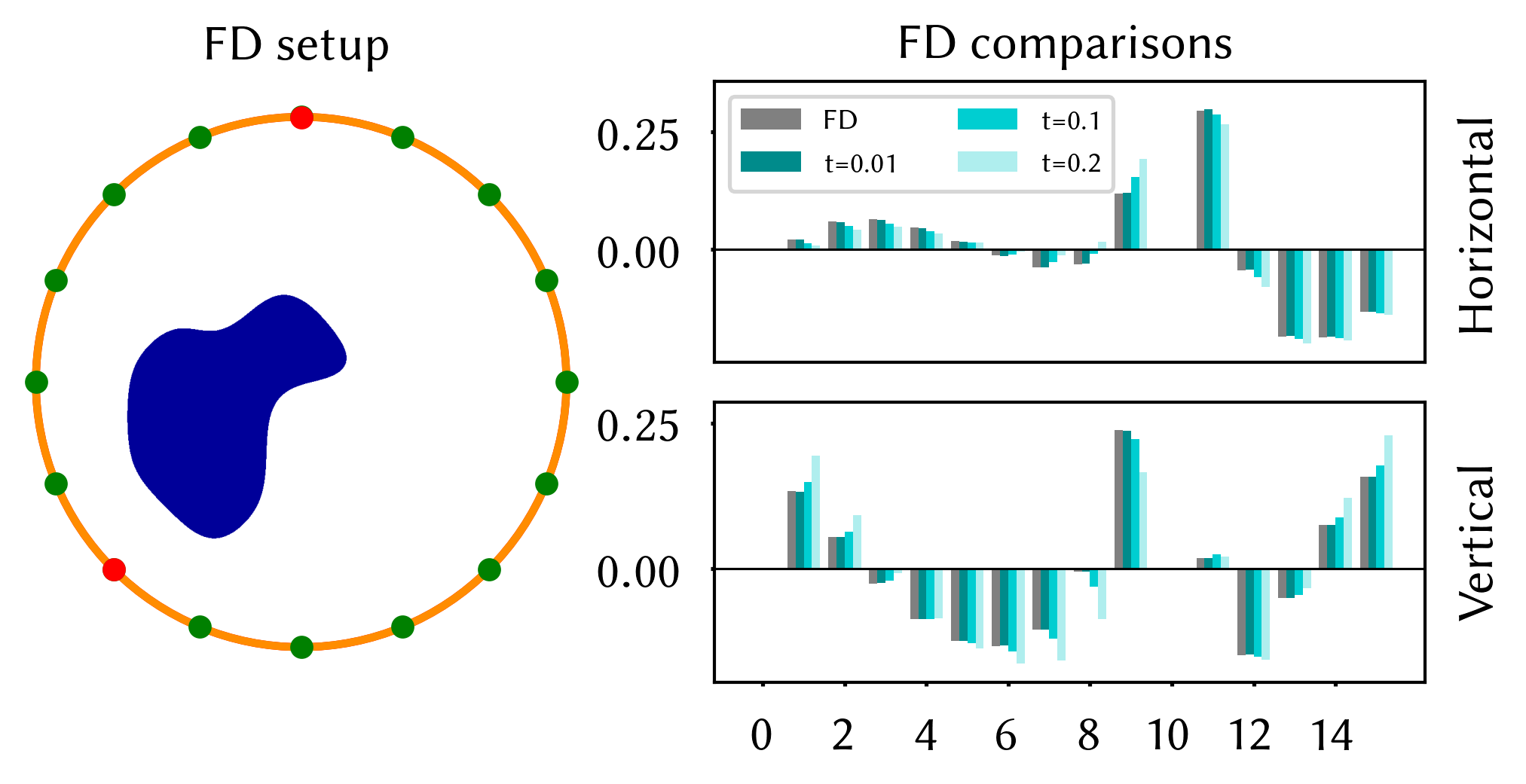

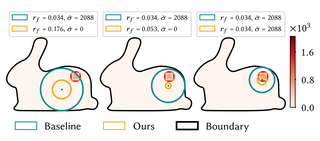

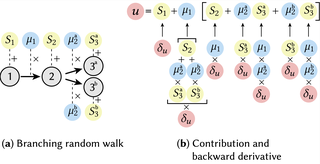

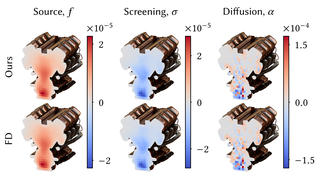

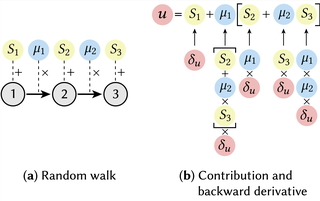

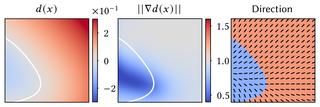

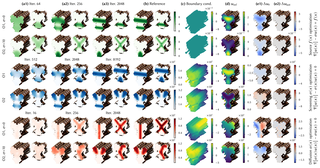

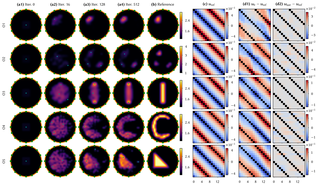

In this art­icle, we de­vel­op al­gorithms tar­get­ing the in­verse form of this prob­lem: giv­en an already ex­ist­ing solu­tion of a PDE, we in­fer para­met­ers char­ac­ter­iz­ing the bound­ary and in­teri­or. In the grid-free set­ting, there are again sig­ni­fic­ant con­nec­tions to ren­der­ing, and we show how in­sights from both fields can be com­bined to com­pute un­biased de­riv­at­ive es­tim­ates that en­able gradi­ent-based op­tim­iz­a­tion. In this pro­cess, we en­counter new chal­lenges that must be ad­dressed to ob­tain prac­tic­al solu­tions. We in­tro­duceΒ ac­cel­er­a­tion and vari­ance re­duc­tion strategies and show how to dif­fer­en­ti­ate branch­ing ran­dom walks in re­verse mode. We fi­nally demon­strate our ap­proach on both sim­u­lated data and a real-world elec­tric­al im­ped­ance tomo­graphy ex­per­i­ment, where we re­con­struct the po­s­i­tion of a con­duct­ing ob­ject from voltage meas­ure­ments taken in a sa­line-filledΒ tank.
